In the world of fastener production, heading machines — more specifically, cold heading machines — are among the most important pieces of equipment. Having worked with industrial forming equipment for over a decade, I’ve seen how these machines have transformed the way bolts, screws, and rivets are manufactured.
Understanding what a heading machine is, how it works, and what to consider when purchasing one can save time, reduce costs, and improve product quality.
A cold heading machine is a specialized piece of equipment used to form metal blanks into heads — such as those seen on bolts, screws, rivets, and pins — without removing material. Instead of cutting away metal like a lathe, it reshapes a section of wire or rod under high pressure. The term “cold heading” refers to the fact that this forming is done at room temperature, using mechanical force rather than heat to achieve the desired shape.
This process is widely used because it is fast, repeatable, and results in strong components. By displacing material instead of machining it away, manufacturers can produce fasteners that have improved grain flow and higher strength.

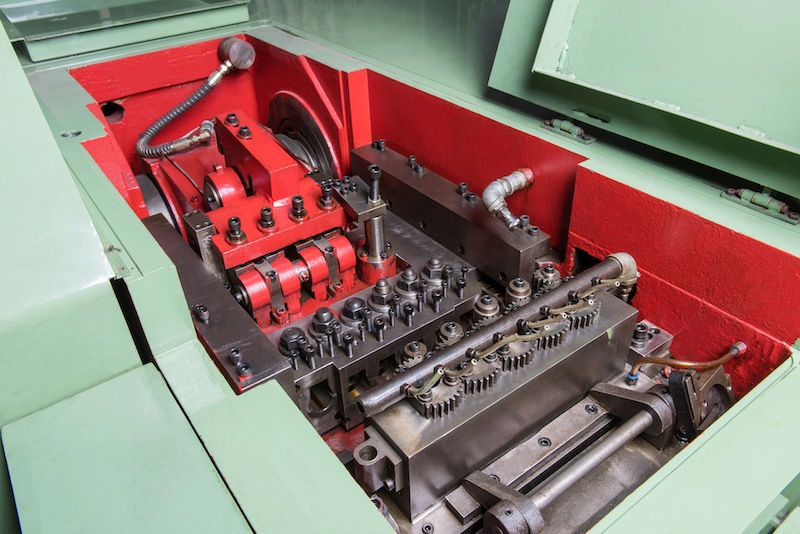

From years of working around heading machines, I can say that their design is both robust and surprisingly precise. The main components include:
▪ Wire Feeding System: Guides wire from the coil and cuts it to the proper blank length.
▪ Die Block: Houses the dies that form the metal into shape.
▪ Punches: High-strength tooling components that strike the blank and force the metal into the die cavity.
▪ Cut-off Mechanism: Shears the wire into consistent blank sizes.
▪ Transfer System: Moves the blank from one station to the next in multi-die machines.
▪ Drive and Control System: Provides the power and timing to synchronize all moving parts.
Each of these components must be precisely aligned to ensure the final product meets dimensional and quality requirements.
The forming action in a heading machine is simple in concept but requires exact engineering. Once the wire is cut into a blank, it is fed into the first die. A punch then strikes the blank, forcing it into the cavity and causing the metal to flow plastically. This process may be repeated across multiple dies and punches to gradually shape the head to its final form.
Because the process does not involve heat, the material’s grain structure is preserved, resulting in a finished part that is both strong and uniform. By adjusting punch stroke, die cavity size, and machine timing, operators can produce everything from simple round heads to complex multi-step geometries.
Cold heading has clear advantages over traditional machining methods. It is faster, with cycle times measured in fractions of a second, making it ideal for high-volume production. It also reduces material waste, since no chips are produced — nearly all of the material from the wire ends up in the final part.
Additionally, cold-headed parts often exhibit superior mechanical properties thanks to improved grain flow and work hardening during the forming process. This means stronger fasteners and fewer failures in service. Lower tooling costs per part and consistent quality further make cold heading one of the most cost-effective forming solutions in manufacturing.
When purchasing a heading machine, there are several factors to keep in mind. Capacity is key — the machine must be able to handle the wire diameter and part length you require. The number of dies is another consideration: single-die machines are simpler and cost-effective for basic parts, while two-die or multi-die machines are better suited for complex head shapes.
It is also important to evaluate the quality of the machine’s construction and the availability of spare parts and technical support. A well-built machine with a reliable supplier will deliver consistent results for many years. Finally, consider the level of automation, safety features, and ease of setup — all of which can have a big impact on productivity and operating costs.
Cold heading machines are a cornerstone of modern fastener manufacturing, offering speed, efficiency, and superior product strength compared to traditional machining. By understanding their design, how they form material, and what to look for when purchasing one, you can make an informed decision that supports your production goals and ensures long-term reliability.
